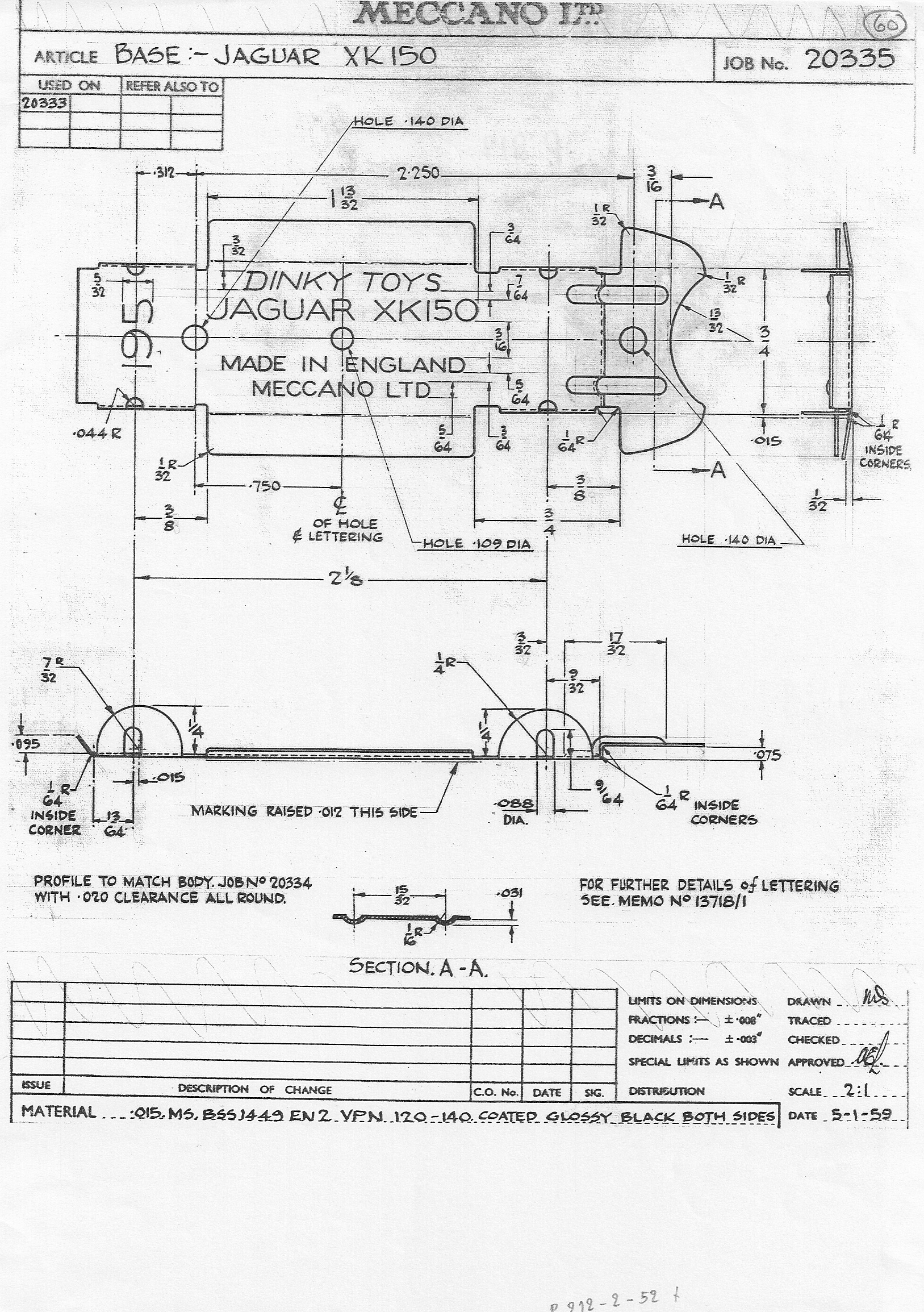

This is the factory drawing for the base of the Janguar XK150,this model was not produced. As can be seen the sales number would have been 195, this was allocated to the Jaguar 3.4 Mk II in 1961.
This image has been graciously donated to the DTCA by Mike Richardson.
